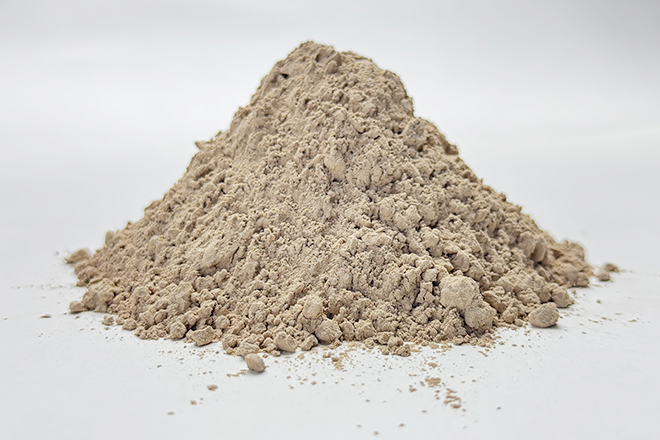

Calcium Aluminate Cement

It features fast setting, high early strength, excellent high-temperature resistance and good chemical stability.

Product Description

Calcium Aluminate Cement is made from high-quality Bauxite and Limestone through high-temperature calcination, with calcium aluminate (CA, CA₂) as the main mineral phase. It features fast setting, high early strength, excellent high-temperature resistance and good chemical stability. It has excellent compatibility with various refractory aggregates, making it an ideal binder for high-temperature refractory castables, plastics and gunning mixes. It is widely used in industrial furnace linings in metallurgy, building materials, petrochemical and other industries.

Specification

Items		Unit	Index
			A600	A700	A900
Al₂O₃		%	50min	50min	53min
SiO₂		%	9.0max	8.0max	6.0max
Fe₂O₃		%	3.0 max	3.0max	3.0max
R₂O		%	0.50 max	0.50 max	0.50 max
Specific Surface Area		m2/kg	320 min	350min	380min
Initial Setting		minute	30 min	30min	150min
Final Setting		minute	360 max	360max	360max
Flexural Strength	1 day	Mpa	5.50 min	6.50min	8.5min
	3 day	Mpa	6.50 min	7.50min	9.5min
Compressive Strength	1 day	Mpa	40 min	50min	70min
	3 day	Mpa	50min	60min	80min

Items		Unit	Index
Items		Unit	CA-70	CA-75	CA-80
Al₂O₃		%	68min	73min	77min
SiO₂		%	1.0max	0.5max	0.50 max
Fe₂O₃		%	0.7max	0.5max	0.50 max
R₂O		%	0.40 max	0.4max	0.4max
Specific Surface Area		m²/kg	350 min	400min	450 min
Initial Setting		minute	150min	150min	30 min
Final Setting		minute	360max	360max	300 max
Flexural Strength	1 day	Mpa	5.0 min	4.0 min	4.0 min
Flexural Strength	3 day	Mpa	6.0 min	5.0 min	5.0 min
Compressive Strength	1 day	Mpa	30.0 min	25.0 min	25.0 min
Compressive Strength	3 day	Mpa	40.0min	30.0min	30.0min

Application

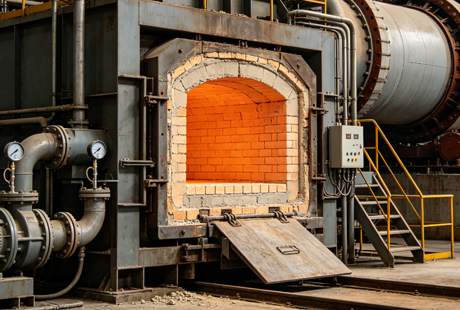

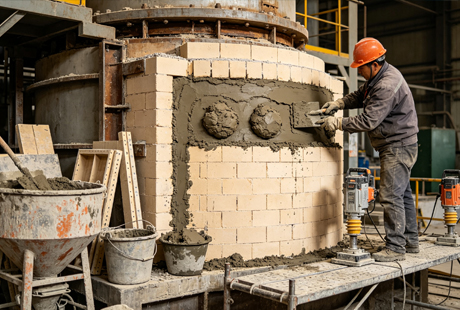

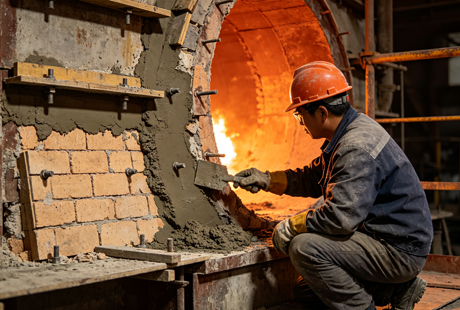

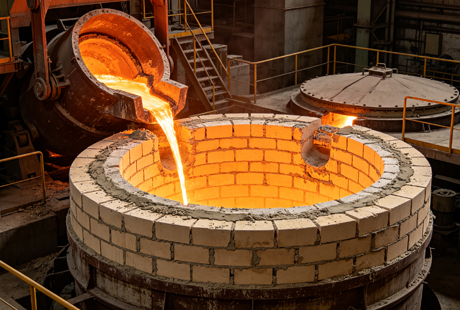

Calcium Aluminate Cement is mainly used in binder for refractory castables, plastics, gunning mixes and ramming masses, high-temperature linings for ladles, tundishes, heating furnaces, rotary kilns and hot blast stoves, heat-resistant concrete, wear-resistant linings and high-temperature repair materials.
