Fused Zirconia

Fused Zirconia

The material offers a unique combination of high-temperature and mechanical properties: extremely high melting point, good thermal stability, high hardness, high toughness, and excellent wear resistance.
Share:

Product Description

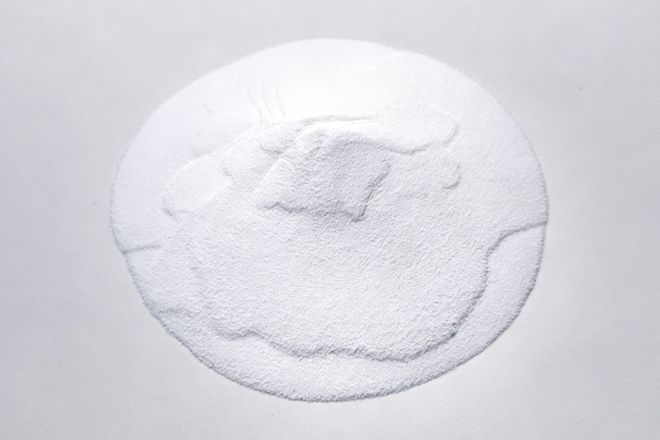

Fused Zirconia is produced by smelting high-grade zircon sand (ZrSiO₄) in an electric arc furnace with a carbon reducing agent. Through high-temperature carbothermic reduction, zircon sand decomposes to produce zirconia (ZrO₂) and silica, with the latter being removed during the process. The material offers a unique combination of high-temperature and mechanical properties: extremely high melting point, good thermal stability, high hardness, high toughness, and excellent wear resistance. It is chemically stable in both oxidizing and reducing atmospheres, and exhibits strong corrosion resistance against many molten metals and slags
Fused Zirconia

Specification

ItemsUnitIndexTypical
ZrO2+HfO2%98.5min99.10
SiO2%0.4max0.15
Fe2O3%0.1max0.03
TiO2%0.25max0.16
Al2O3%0.40max0.25
Sizes%-100mesh, -200mesh, -325mesh

Application

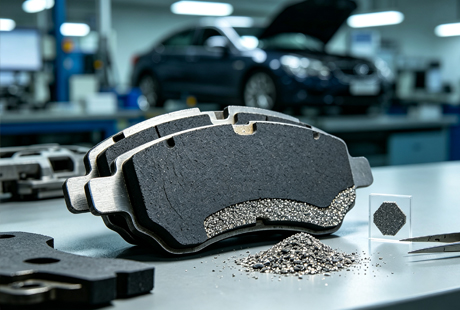

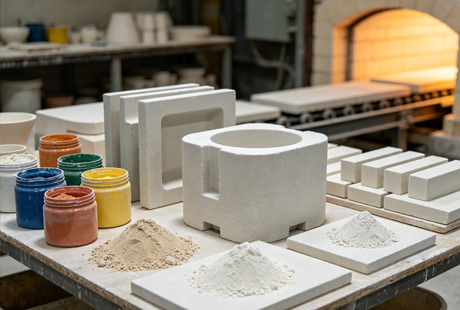

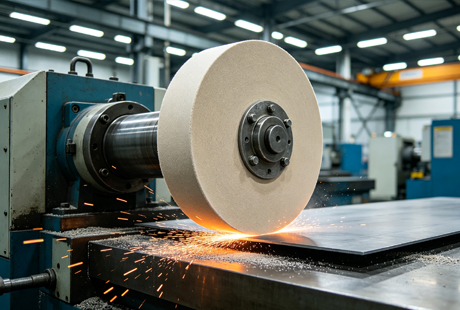

Fused Zirconia is primarily used in refractories for steelmaking and glass furnaces, ceramic pigments and kiln furniture, high-efficiency zirconia-alumina abrasives, and advanced technical ceramics including oxygen sensors, thermal barrier coatings, and aerospace structural components. It is also employed in automotive friction materials such as brake pads.

Packaging

Packaging can be configured to match handling, storage and shipment requirements. Available options may include:
Bulk bags: 1,000 kg, 1,250 kg or 1,350 kg, supplied with or without pallets.
Small bags: 20 kg or 25 kg plastic or paper bags, supplied with or without pallets.
Custom packaging: Alternative bag types, net weights, palletization and markings are available on request.
