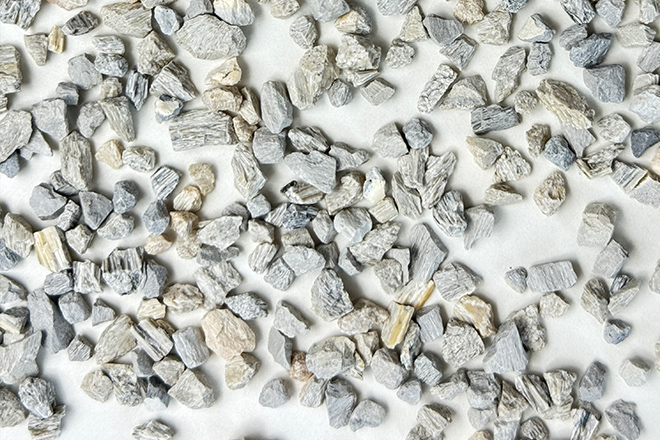

Fused Zirconia Mullite

Fused Zirconia Mullite

The material features well-developed coarse crystals, a dense structure, and a uniform glass phase distribution. It offers high refractoriness, low thermal expansion coefficient, excellent thermal shock resistance, and strong resistance to slag and molten glass corrosion.
Share:

Product Description

Fused Zirconia Mullite is produced by melting high-purity industrial alumina, high-purity zircon sand, and high-quality silica in electric arc furnace at temperatures over2000℃, followed by controlled cooling and crystallization. Its mineral composition consists of a eutectic structure of baddeleyite (ZrO₂) and mullite (3Al₂O₃·2SiO₂), with ZrO₂ content typically ranging from 33% to 40%. The material features well-developed coarse crystals, a dense structure, and a uniform glass phase distribution. It offers high refractoriness (melting point approx. 1850℃), low thermal expansion coefficient, excellent thermal shock resistance, and strong resistance to slag and molten glass corrosion, demonstrating exceptional chemical stability particularly against alkaline media and molten glass.
Fused Zirconia Mullite

Specification

ItemsUnitZM-30ZM-33ZM-36
A12O3%45-5043-4841-46
SiO2%15-2015-2015-20
ZrO2%30 min33 min36 min
Mullite Phase%53 min51 min50 min
Baddeleyite Phase%30 min31 min32 min
Corundum Phase%5 max5 max5 max
Glass Phase%5 max5 max5 max
Bulk Densityg/cm33.5 min3.6 min3.65 min
Apparent Porosity%5 max5 max5 max

Application

Fused Zirconia-Mullite is a critical refractory material for the glass melting furnaces, metallurgical industry, and ceramic sector. Additionally, it plays an important role in high-end high-temperature industrial sectors including petrochemicals and electronics.

Packaging

Packaging can be configured to match handling, storage and shipment requirements. Available options may include:
Bulk bags: 1,000 kg, 1,250 kg or 1,350 kg, supplied with or without pallets.
Small bags: 20 kg or 25 kg plastic or paper bags, supplied with or without pallets.
Custom packaging: Alternative bag types, net weights, palletization and markings are available on request.
