Your Position: Home > Refractories > Fused Magnesia

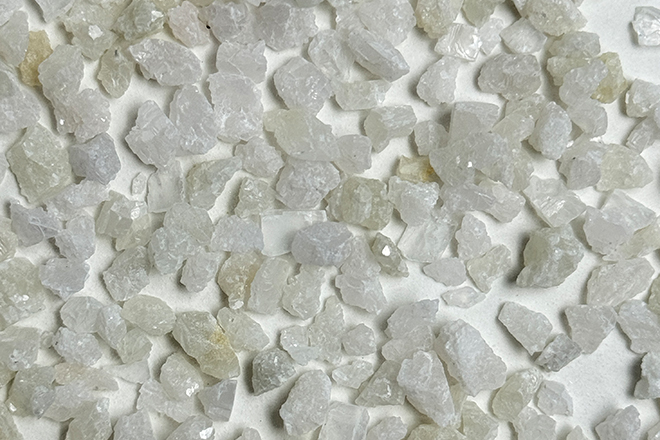

Fused Magnesia

Fused Magnesia

It features high purity, large crystal size, dense structure, high melting point, excellent high-temperature strength, outstanding resistance to alkaline slag corrosion and good thermal shock resistance.
Send E-mail
Contact Now
Share:
Description
Specification
Application
Packaging

Product Description

Fused magnesia is produced by melting high-grade magnesite or high purity lightly burned magnesia in an electric arc furnace at ultra-high temperature, followed by controlled cooling and crystallization. It features high purity, large crystal size, dense structure, high melting point, excellent high-temperature strength, outstanding resistance to alkaline slag corrosion and good thermal shock resistance, making it an essential raw material for high-grade magnesia, magnesia-chrome and magnesia-spinel refractories.
Fused Magnesia

Specification

Fused Magnesia

ItemsUnitBFM 95BFM 96BFM 97BFM 98
MgO%94.5min95.5 min96.8min97.5min
SiO2%3.0max2.2 max1.5max0.6max
Fe2O3%1.0max1.0 max0.8max0.6max
CaO%2.2max2.0max1.5max1.2max
Al2O3%0.4 max0.2 max0.2 max0.2 max
LOI%0.2max0.2max0.2max0.15max
Bulk Densityg/cm33.453.453.483.50

Large Crystal Fused Magnesia

ItemsUnitWFM 97WFM 97.5WFM 98WFM 98.5WFM 99
MgO%97min97.5 min98min98.5min99min
SiO2%0.6max0.5 max0.4max0.3max0.2max
Fe2O3%0.8max0.6 max0.5max0.5max0.3max
CaO%1.5max1.2max0.9max0.8max0.6max
Al2O3%0.2 max0.15 max0.1 max0.1 max0.1 max
LOI%0.15max0.15max0.15max0.15max0.15max
Bulk Densityg/cm33.453.483.503.503.50

Application

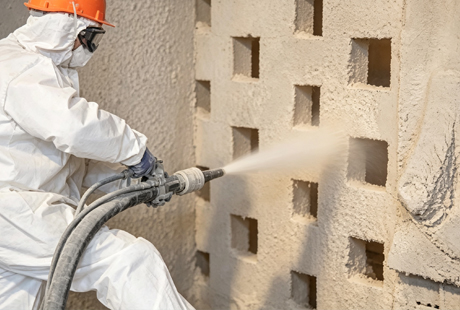

Unshaped refractories

Refractories

High-grade magnesia bricks, magnesia-carbon bricks, and unshaped refractories for steel-making furnaces (EAF, converters, induction furnaces)

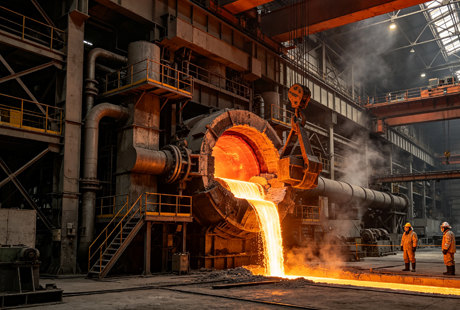

Metallurgy

Metallurgy

Lining materials for steel, cement, glass, and non-ferrous metal smelting furnaces

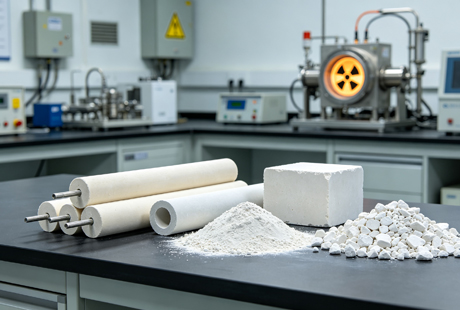

Electrical insulation

Electrical insulation

Filling material for tubular heating elements in appliances, industrial heaters, and nuclear power systems

Advanced ceramics

Electrical ceramics, thermocouple materials, and nuclear ceramics

Packaging

Packaging can be configured to match handling, storage and shipment requirements. Available options may include:
Bulk bags: 1,000 kg, 1,250 kg or 1,350 kg, supplied with or without pallets.
Small bags: 20 kg or 25 kg plastic or paper bags, supplied with or without pallets.
Custom packaging: Alternative bag types, net weights, palletization and markings are available on request.
